Plow Point Harrow Blade Trencher Accessories Customizable Plowshare

Product Categories
Jinan Xinyiyin Import and Export Trading Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Plow Point Harrow Blade Trencher Accessories Customizable Plowshare

Brand Name : Xinyi

Model Number : 65Mn

Certification : CE

Place of Origin : China

MOQ : 100 pieces

Price : US $ 22.48-24.26 /pieces

Payment Terms : L/C,T/T,Western Union

Supply Ability : 5000/Month

Delivery Time : 7-14 work days

Packaging Details : Iron Frame

Model NO. : 65Mn

Material : 65mn/40mnb

Power Source : Diesel

Weight : 1.1-27kgs

After-sales Service : Provide

Warranty : 1year

Color : Red/Black/Blue/Yellow

Width : 12inch-44inch

Thickness : 3mm-12mm

Hardness : 38-46HRC

Edge of Disc Blade : Round or Notched

Shape : Flat,Concave or Wavy

Surface Treatment : Painting

Transport Package : Pallet

Specification : Customizable

HS Code : 8413290000

Contact Now

Plow Point Harrow Blade Trencher Accessories Customizable Plowshare

Product Description

Yucheng Xinyi Machinery Manufacturing Co., Ltd.

Product Technical Parameter

Name:65Mn Plough Plow Blade Harrow Disc Blade for Harrow Plough

Disc blade is widely used in disc plough, disc harrow on the most important wear parts. we disc blade are exported to the United States, Canada, Russia, South Africa, Southeast Asia and other countries every year, with an annual export of 1 million pieces. has more than 20 years of production experience, helping customers in various regions to open up better markets.


Thanks to the use of China's best steel Anshan steel and Lingyuan steel, we ensure that the quality of our disks is better and the service life is longer, up to 2-3 years.

Material:

65Mn,Boron steel

Hardness:

HRC38-45, HRC43-48

Thickness:

3.0-12.5mm

Size/dimension:

12"-44"(300mm-1120mm)

Edge of Disc Blade:

Round or Notched.

Shape:

Flat,Concave or Wavy

MOQ:

100 pcs

Production Capacity:

7 Million pcs annually

Surface treatment:

Painting

Colors:

Blue or black ( matt or bright), Made to your order

Hole Type:

Square, Round, Hexagon, Clover Leaf, Optional

Hole Size:

27x27mm, 42x42mm, optional

Working Depth:

200mm, 300mm

Working Width:

3.4M ~ 6.2M

Packing:

Non-fumigation wooden case, metal case according policy of different regions

Feature /Characteristic:

Highest wear life due to special edge making process

Common Specifications of Disc

Dia.

Concavity

Thickness

mm

inch

mm

mm

255

10

12

3

305

12

19

3

330

13

25

3

355

14

38

3

410

15

38~50

3

430

17

57

3,4

460

18

38~60

3,4

480

19

57

3,4

510

20

44~63

3,4,5

535

21

63

3,4,5

560

22

60~85

4,5,6

585

23

75~90

4,5.6

610

24

75~95

4,5,6

660

26

86~115

5,6,7,8

710

28

100~130

5,6,7,8

760

30

120~135

6,7,8,10,12

810

32

120~140

8,10,12

910

36

120-200

8,10,12

960

38

120-200

8,10,12

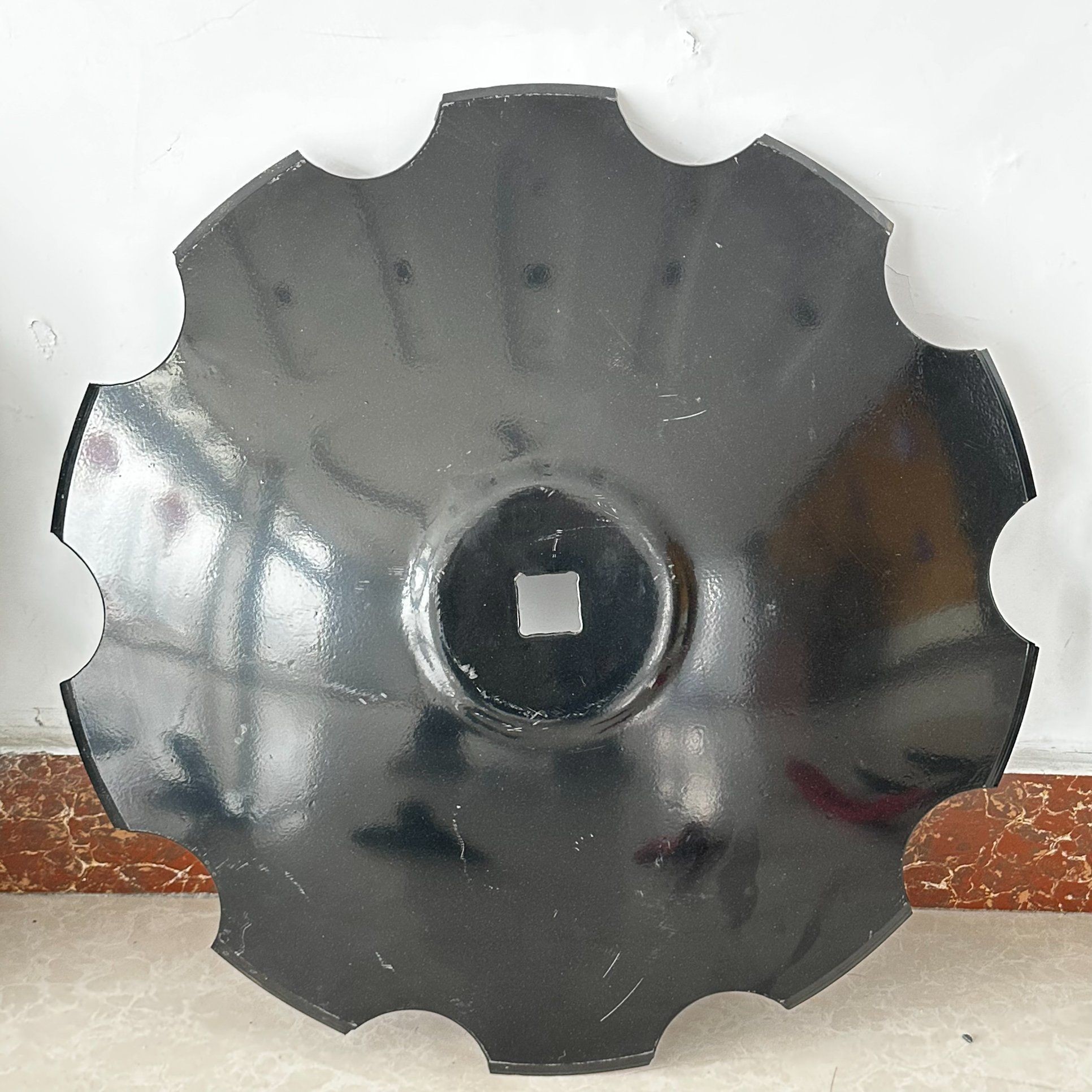

Detailed Photos

Plow Point Harrow Blade Trencher Accessories Customizable Plowshare

Packaging & Shipping

Normal packing or According to your requirement.

Safe, complete and fast delivery of goods to customers.

Company Profile

Business type

Manufacture

Location

Yucheng, Shandong,China

Year Established

2005

Occupied area

50 Acres

Company certification

CE, ISO9001

Main product

Disc harrow, disc plough, trailer, boom sprayer , rotary tillers, potato planter plowing blade, plough blade, soil-loosening shovel and so on.
Wif good quality, excellent performance, our products annually export to countries around the world, and we has gained the majority of customers trust.

After Sales Service

1,All products enjoy 12 months warranty period. The warranty period is calcualted from the date of bill of lading .
2,We provide our clients with genuine spare parts with the highest quality,exact fitness .If needs,please submit your spare parts request to us,and list products name ,description of required parts.we guarantee that your request will be handled quickly and appropriately.
3,We can also provide training services to different users.
