Product Technical Parameter

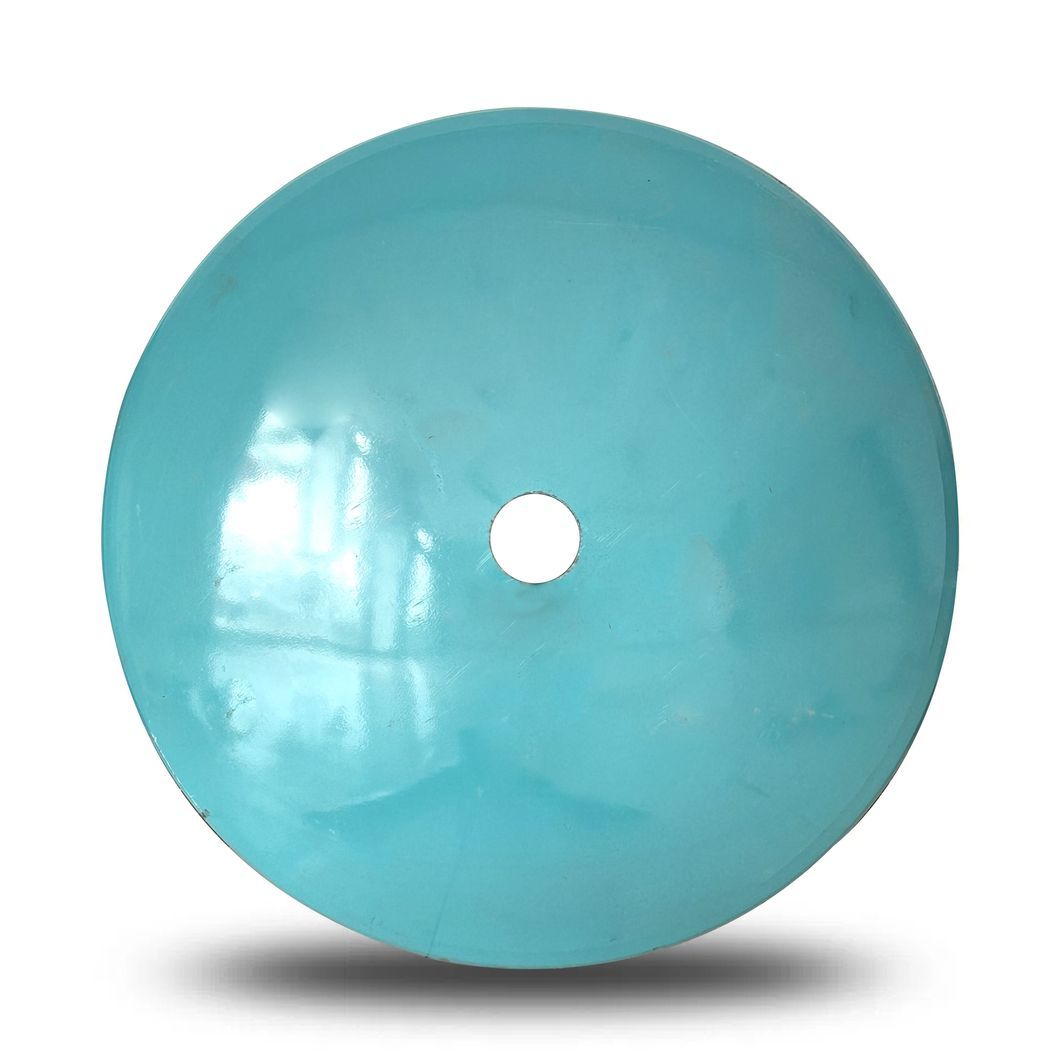

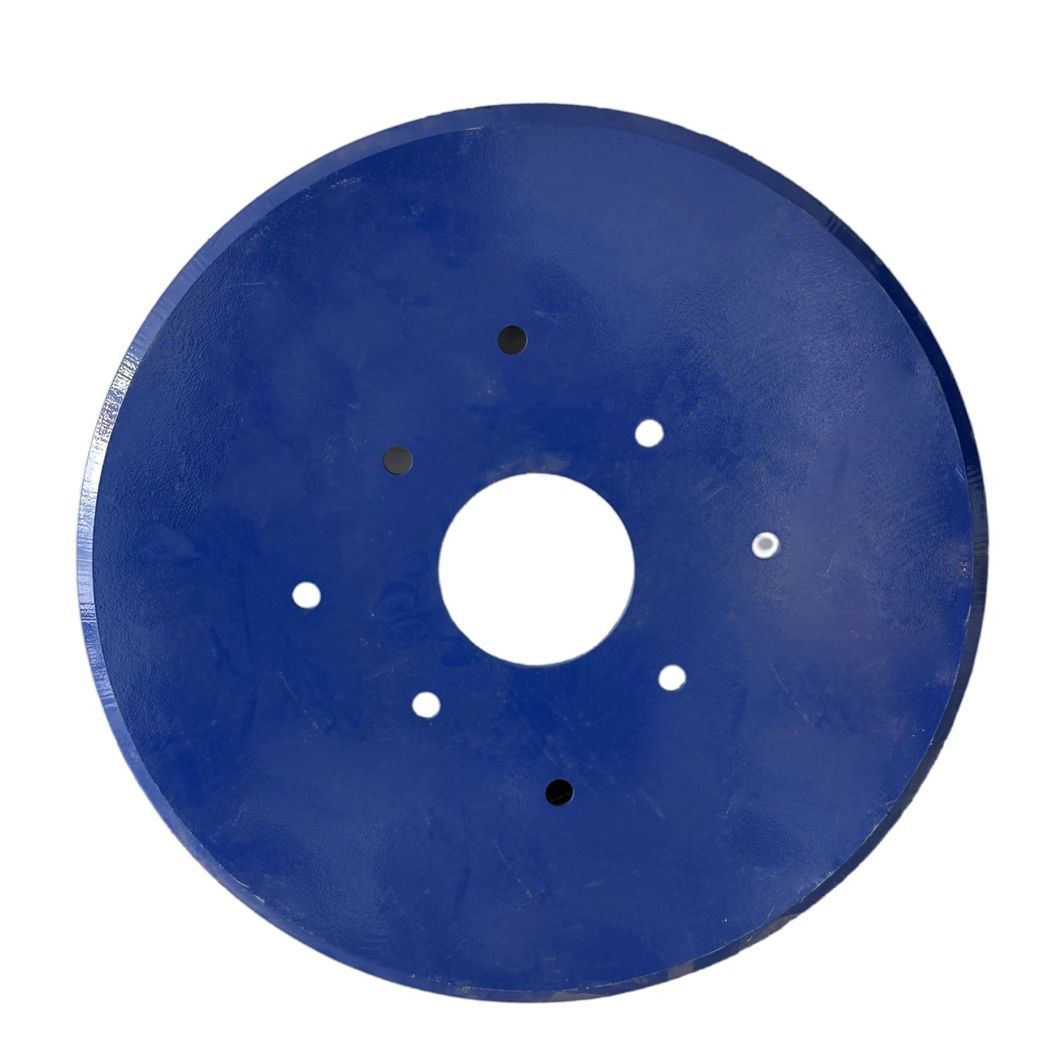

Name:65Mn Plough Plow Blade Harrow Disc Blade for Harrow Plough
Disc blade is widely used in disc plough, disc harrow on the most important wear parts. we disc blade are exported to the United States, Canada, Russia, South Africa, Southeast Asia and other countries every year, with an annual export of 1 million pieces. has more than 20 years of production experience, helping customers in various regions to open up better markets.
| Material: | 65Mn,Boron steel |
| Hardness: | HRC38-45, HRC43-48 |
| Thickness: | 3.0-12.5mm |
| Size/dimension: | 12"-44"(300mm-1120mm) |
| Edge of Disc Blade: | Round or Notched. |
| Shape: | Flat,Concave or Wavy |
| MOQ: | 100 pcs |
| Production Capacity: | 7 Million pcs annually |
| Surface treatment: | Painting |
| Colors: | Blue or black ( matt or bright), Made to your order |
| Hole Type: | Square, Round, Hexagon, Clover Leaf, Optional |
| Hole Size: | 27x27mm, 42x42mm, optional |
| Working Depth: | 200mm, 300mm |
| Working Width: | 3.4M ~ 6.2M |
| Packing: | Non-fumigation wooden case, metal case according policy of different regions |
| Feature /Characteristic: | Highest wear life due to special edge making process |
| Common Specifications of Disc |
| Dia. | Concavity | Thickness |
| mm | inch | mm | mm |
| 255 | 10 | 12 | 3 |
| 305 | 12 | 19 | 3 |
| 330 | 13 | 25 | 3 |
| 355 | 14 | 38 | 3 |
| 410 | 15 | 38~50 | 3 |
| 430 | 17 | 57 | 3,4 |
| 460 | 18 | 38~60 | 3,4 |
| 480 | 19 | 57 | 3,4 |
| 510 | 20 | 44~63 | 3,4,5 |
| 535 | 21 | 63 | 3,4,5 |
| 560 | 22 | 60~85 | 4,5,6 |
| 585 | 23 | 75~90 | 4,5.6 |
| 610 | 24 | 75~95 | 4,5,6 |
| 660 | 26 | 86~115 | 5,6,7,8 |
| 710 | 28 | 100~130 | 5,6,7,8 |
| 760 | 30 | 120~135 | 6,7,8,10,12 |
| 810 | 32 | 120~140 | 8,10,12 |
| 910 | 36 | 120-200 | 8,10,12 |
| 960 | 38 | 120-200 | 8,10,12 |
