Yucheng Xinyi Machinery Manufacturing Co., Ltd.
Product Technical Parameter

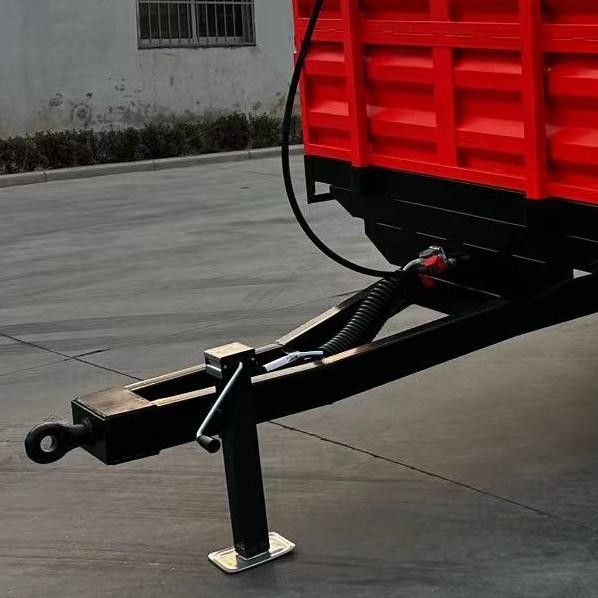

Name:Hydraulic Dump Farm Trailer 5T Red Colour Two Alex Four Wheel 2060Kg
The 7C series farm trailer offers a versatile range with load capacities from 3T to 20T, featuring a rational structure, attractive design, cost-effectiveness, and durability. It is compatible with various tractor models and comes in multiple configurations, including suspension and semi-suspension types, as well as self-discharging and non-self-discharging models. Designed for both road and field transportation, it efficiently matches tractors with 8-120 horsepower.
Key Features:
-
Robust Construction – The 3mm-thick base plate and 1.5mm side plates ensure strength, with customization options for thicker materials.
-
Premium Load Capacity – Equipped with high-grade tires and 11-layer bow boards to guarantee maximum load compliance.
-
High-Quality Components – All parts are top-tier and available for purchase directly from our factory.
-
Anti-Corrosion Protection – The surface is plastic-coated to prevent rust and enhance longevity.
Product Parameters: | Model | 7C-5 / 7CX-5 | 7CX-5 |
Carriage dimension
(mm) | 4000*2150*550 | 4000*2150*550 |
Overall dimension
(mm) | 5780*2250*2200/
5780*2250*2320 | 5780*2250*2320 |
| Rated weight(kg) | 5000 | 5000 |
| Dead weight(kg) | 1457 / 1750 | 1880 |
| Tyre size/quantity | 8.25-16/4 | 8.25-16/4 |
| Unload form | NO /Hydraulic dump( left & right ) | Hydraulic dump(left,right and back) |
| Brake form | Air brake | Air brake |
| Matched power(HP) | 40-50 | 45-55 |
| Quantity /GP | 10/10 | 10 |
Normal packing or According to your requirement.
Safe, complete and fast delivery of goods to customers.
1,All products enjoy 12 months warranty period. The warranty period is calcualted from the date of bill of lading .
2,We provide our clients with genuine spare parts with the highest quality,exact fitness .If needs,please submit your spare parts request to us,and list products name ,description of required parts.we guarantee that your request will be handled quickly and appropriately.
3,We can also provide training services to different users.
1.Q: Full price list for these products
A: If you need the price list for these products, please notify the product model so that I can quote you accordingly. Please understand we have a very wide product range, we don't usually offer full products price list.
2. Q: Business terms
A: Shipment time: 25-40days after your payment
Shipment: By sea
Loading port: Qingdao port, China
Destination port: ...To be advised
Payment: T/T , L/C
Warranty: 1 year
3.Q:How can I order from you?
A: Please send us your enquiry list; we will reply you within two working days.
4.Q:If the finger I look for are not in your catalogue, what should I do?
A: We can develop it according to your drawing or sample.
5. Q: Why choose Xinyi for cooperation?
A: Comparing with our competitors, we have much more advantages as follows:
1. More than 25 years in manufacturing farming machine.
2. More Professional Sales staffs to guarantee the better service.
3. More agri machines for your choice.
4. More New products into your range to avoid price competition.
5. Larger quantity production and shipment.
6. Better quality to guarantee better Credit.
7. Faster delivery time: Only 7 days.
8. More stick quality checking before shipment.
9. More reasonable after-sales service terms.
10. More famous brand: "XINYI" brand and "CE"ceitification.
11.Lower repair rate and bad review rate.
12. Have received unstinting support from the Chinese government.
If you are interested in our products, feel free to contart me.
